Features:-
Low Price

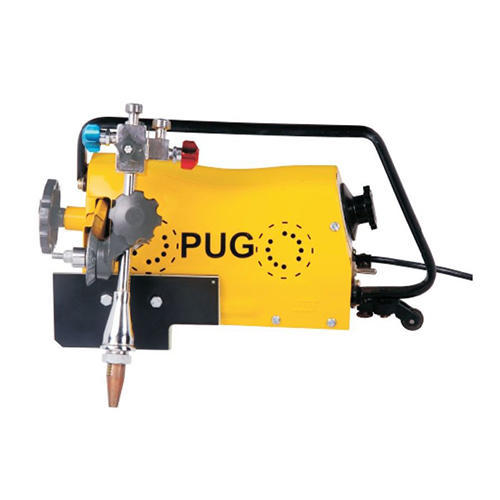

Every workshop can afford the MSC-1 Cutting M/C even if there is only an occassional demand for mechanized precision cutting.
Easy to Handle
The machine weights only about 9 Kg and has a convenient wrap-round handle for carrying as well as for
Versatile
The machine can produce straight cuts on any length (Square edge or bevel preparation) with the same precision. The machine will cut circles and also shapes with gradual curves, when hand guided.
General Description:-
Body
Made of pressed steel with wrap-round steel handle asbestos heat deflector, and anchor clip to prevent hose drag on Cutter.
Drive
High performance 1/20 HP, 220/240V. AC/DC geared motor with continuous rating.
Control
Drive is through a high speed gear-box with rotary resis tance speed control giving smooth cutting speeds. The speed can be varied from 80 to 800 MM/min to suit the nature of cutting (Reference to pressure & speed chart). The speed of the machine can also be varied while cutting is in progress. Forward/off/reverse switch is located below the speed control knob for easy operation.
Cutting Torch
Injector type specially designed to prevent back fire. It works on Oxygen and D. A. or LPG with appropriate Cutting Nozzles.
Cutter Holding Attachments
Rack and Penion cutter adjustment enables vertical and horizontal movement of the Torch. The end of the rack is degree calibrated to enable angular adjustments of the Torch for Bevel cutting
Circle Cutting Attachment
The standard cutting attachment supplied with the machine can be fixed from either side of the machine with two Clamping Screws.
Rail Track
The machine runs on an extruded aluminum track of 1.8 meter length.
