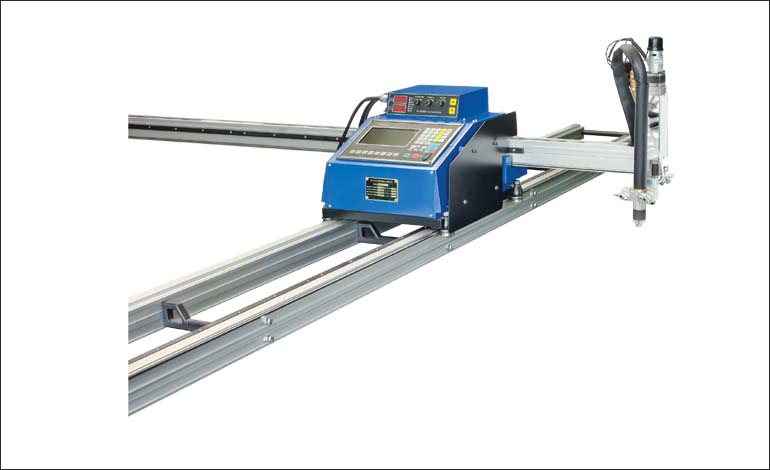

Portable CNC Cutting Machine
Portable CNC Cutting Machine
The portable CNC cutting system from WARPP offers a simple solution to precision cutting requirements.The machine can be either used with flame cutting (Oxy-Fuel) torch Or it can be coupled with suitable plasma power source. When coupled with plasma power source, the machine is equipped with arc voltage height controller. The machine has an USB interface through which CNC code can be transferred to the machine. The machine has standard library for commonly used shapes.
Features:-
- Simple Design
- Easy to install
- Easy to use controls
- Break point restoration
- Automatic break point memory
Technical Specifications:-
|
Machine Model |
P-CNC-1250X3000F |
P-CNC-1500X3000F |
|
Input Supply |
Single Phase 230 Volts 50 Hz Supply |
|
|
LCD Dimension |
5.7 Inches |
|
|
Cutting Mode |
Flame Cutting 0nIy |
Flame cutting. Plasma with Suitable power source |
|
Overall Width of the cross Beam (mm) |
2000 |
|
|
Overall Length of the track (mm) |
3500 |
|
|
Effective Cutting Width (mm) |
1500 |
|
|
Effective Cutting Length (mm) |
3000 |
|
|
Cutting Speed (mm / Min) |
80 to 3000 |
|
|
Max. Speed (mm / Min) |
3000 |
|
|
Cutting Thickenss in Flame (mm) |
6 to 100 |
|
|
Cutting Thickness in Plasma |
Not Applicable |
As per power source capacity |
|
Height Sensor |
Motorised Litt for Up / Down operated by Switch on Controller |
Arc Voltage Height controller in Plasma Mode |
