Inverter Based MIG Series Welding Machines
Inverter Based MIG Series Welding Machine

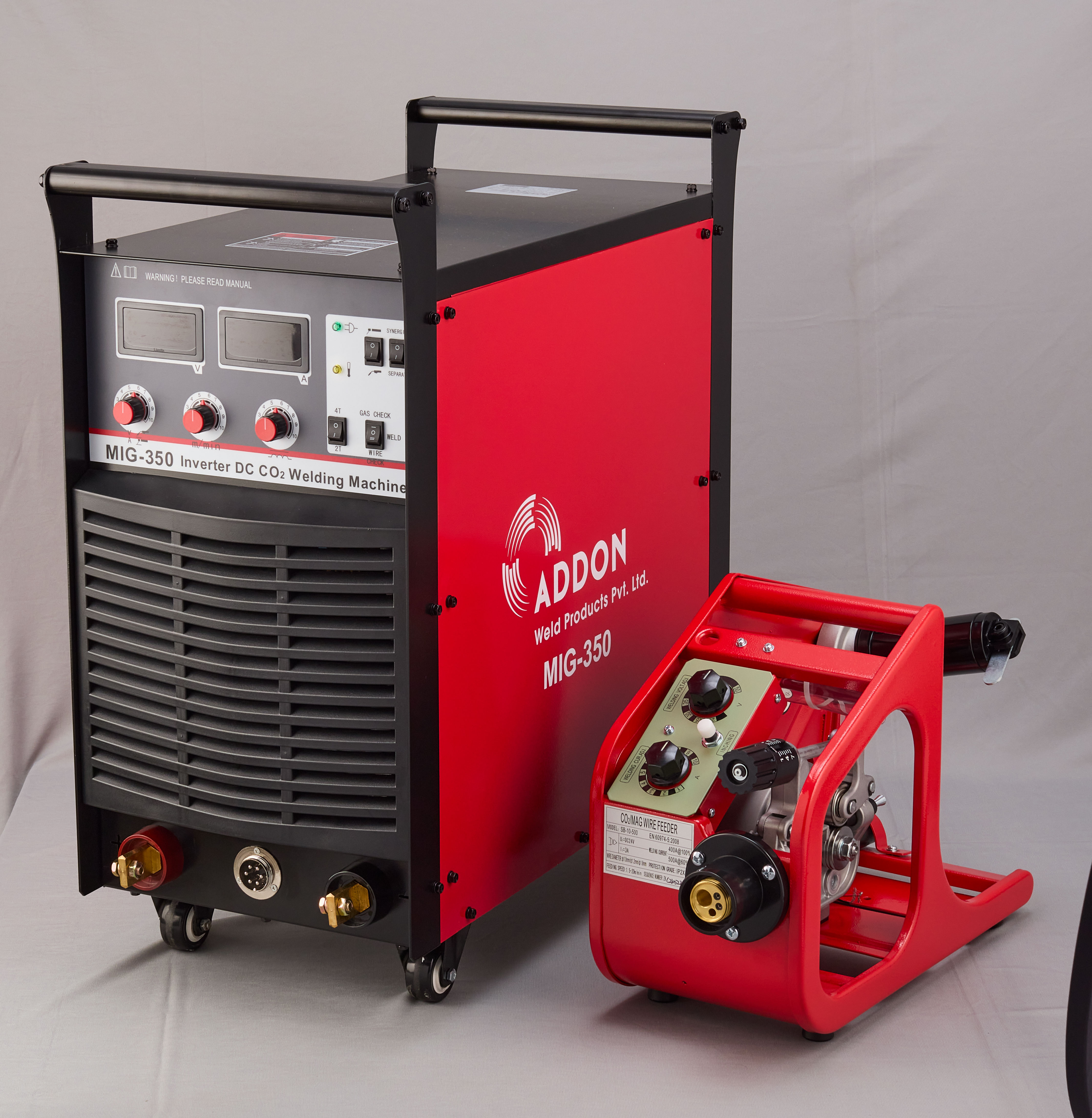

Addon MIG Series Machines are IGBT Inverter based multi process equipment with CC/CV Characteristics Welding Power Source with Soft Switch Technology and are used for GMAW/FCAW Manual Metal Arc Welding and also for Scratch Start Argon except AI & MG alloys.
Technical Specifications:-
|
PARAMETERS |
ADDON MIG – 350 |
ADDON MIG - 500 |
|
Rated In Put Voltage |
380-440 Volts, 3 Phase, 50 HZ |
380-440 Volts, 3 Phase, 50 HZ |
|
Input Power |
14.00 KVa |
24.3 KVa |
|
Out Put Voltage Range GMAW |
15.7 - 31.5 |
15.7 - 39 |
|
Current Range |
60 – 350 |
60 - 500 |
|
Duty Cycle |
60% |
60% |
|
Efficiency |
89% |
89% |
|
Power Factor |
0.90 |
0.90 |
|
Insulation Grade |
H |
H |
|
Wire Feeding Speed |
1.5 to 24 m/min |
|
|
Torch |
Euro Type |
Euro Type |
Features:-
- Soft Switching Inverter Technology
- High Efficiency
- Digital Display Meter
- Better Power Factor
- Excellent Arc and Current Feedback Circuit
- Can be used with extended cable
- Higher Open Circuit Voltage
Basic Outfit:-
- Power Source
- Earthing Cable & Clamp
- Wire Feeder with 5 meter Interconnecting Cable
- Mig Torch
