Inverter Based Arc Series Welding Machines
Inverter Based Arc Series Welding Machines

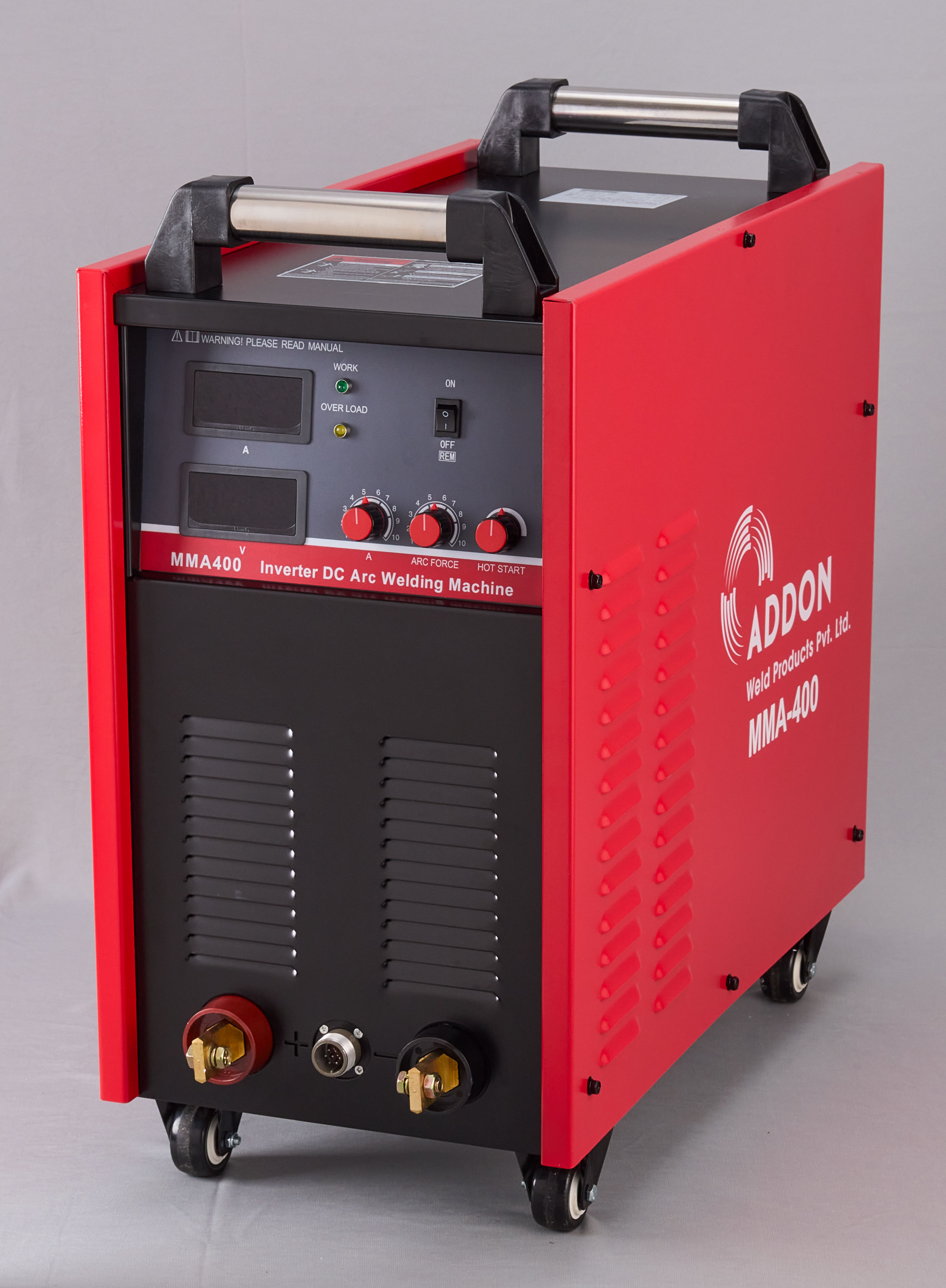

Addon Arc Series Machines are IGBT Inverter based ARC Welding Power Source and are used for Manual Metal Arc Welding with Acid & Basic Coated Electrodes. The Machine is suitable to use 2.00 mm, 2.50 mm & 3.15 mm Welding Electrodes.
Technical Specifications:-
|
PARAMETERS |
ADDON ARC – 400 |
ADDON ARC - 630 |
|
Input Power |
17 KVA |
35 KVA |
|
Current Range |
20 – 400 |
30 - 630 |
|
Duty Cycle |
60% |
60% |
|
Weight |
28 KG. |
40 KG. |
|
Dimension |
550 * 298 *546 |
657 * 316 * 660 |
|
Input Supply |
380 – 440 V, 3 Phase,50 HZ Supply |
|
|
Open Circuit Voltage |
75 Volts |
|
|
Efficiency at full load (%) |
89 |
|
|
Power Factor |
0.95 |
|
|
Ambient Temperature |
40° |
|
Features:-
- Soft Switching Inverter Technology
- Easy Arc Striking & Stable Arc
- High Frequency Digital Display Meter
- Gouging Possible in 630 Amp. Equipment
- High Power Factor
- Low Volume & Lighter in weight
- Adjustable Arc Force
- Can be used with extended cable
Basic Outfit:-
- Power Source
Optional Accessories:-
- Remote Controllor With Wire
